Firmware for ASIC Miners: A Practical Guide to Safer Upgrades

Mining requires maximum hardware stability, as every minute of downtime means losses. Standard Antminer software does not always take into account the specifics of miners’ working conditions. That is why many users are looking for more flexible solutions. Choosing a reliable asic firmware helps to strike the optimal balance between performance and costs, reduce the risk of overheating, and maintain stability even under peak loads.

When stock falls short

The standard firmware from Antminer performs only basic functions: it maintains stable operation of the device, controls the temperature and fan speed. But its capabilities are limited. It doesn’t take into account a variety of operating conditions, such as high humidity, voltage fluctuations, or variable electricity rates. For large farms, this becomes a problem, as the drain does not allow for the flexibility to adjust the parameters as needed to reduce costs and increase efficiency.

In such cases, owners turn to customised solutions. They offer greater control, allow you to manage the W/TH ratio, set your own operating profiles, and optimise power consumption. This is where Vnish comes to the fore, a firmware developer that adapts miners to specific operating scenarios and avoids downtime.

Benefits & trade-offs

The use of custom Vnish firmware opens up new opportunities for miners that significantly extend the standard functions of the stock software. The main advantage is the control of energy efficiency. By precisely adjusting frequencies and voltages, users can reduce power consumption, which is especially important for large data centres. For example, a farm with hundreds of Antminer S19s can save thousands of dollars a year by using optimised power consumption profiles.

Another strong point is security and stability. Vnish provides algorithms to protect against overheating and unstable chip operation. This helps to avoid breakdowns at peak load times and extend the life of the equipment. The firmware also supports centralised management, which is critical for operators with hundreds of devices, as the administrator can make changes to all miners simultaneously.

However, there are certain compromises. First, the user must prepare a backup plan, keep copies of the stock firmware, and have rollback instructions. Secondly, a minimal understanding of the web interface and ASIC parameters is required. The Vnish documentation describes this in detail, but beginners will have to spend some time mastering it.

Thus, the advantages of flexibility, cost, and security prevail if the user is ready to take a responsible approach to the installation and configuration process.

Prep steps (backups, access, power)

Before installing Vnish firmware, it is important to properly prepare your hardware and environment. This reduces the risk of failures and ensures a secure upgrade process. One of the key steps is to create backups. Users are advised to save the stock firmware and pool settings. This will allow you to quickly restore the system in case of unforeseen problems. Detailed instructions on how to roll back to the factory software can be found in the Vnish documentation.

The second aspect is stable access to the equipment. Before starting the update, you need to check the operation of the local network and the ability to log in to the miner’s web interface. If the farm has dozens or hundreds of devices, the administrator should prepare a list of IP addresses and check the centralised management tools supported by the firmware. This will help avoid situations where some equipment is left without an update.

Power supply is equally important. During the firmware installation process, a power outage can damage the system. Therefore, it is recommended to use power regulators or uninterruptible power supplies (UPS), especially in regions with unstable power supply.

Thus, the basic preparation steps form the basis for a safe transition to the new firmware version and minimise possible risks.

Install guide

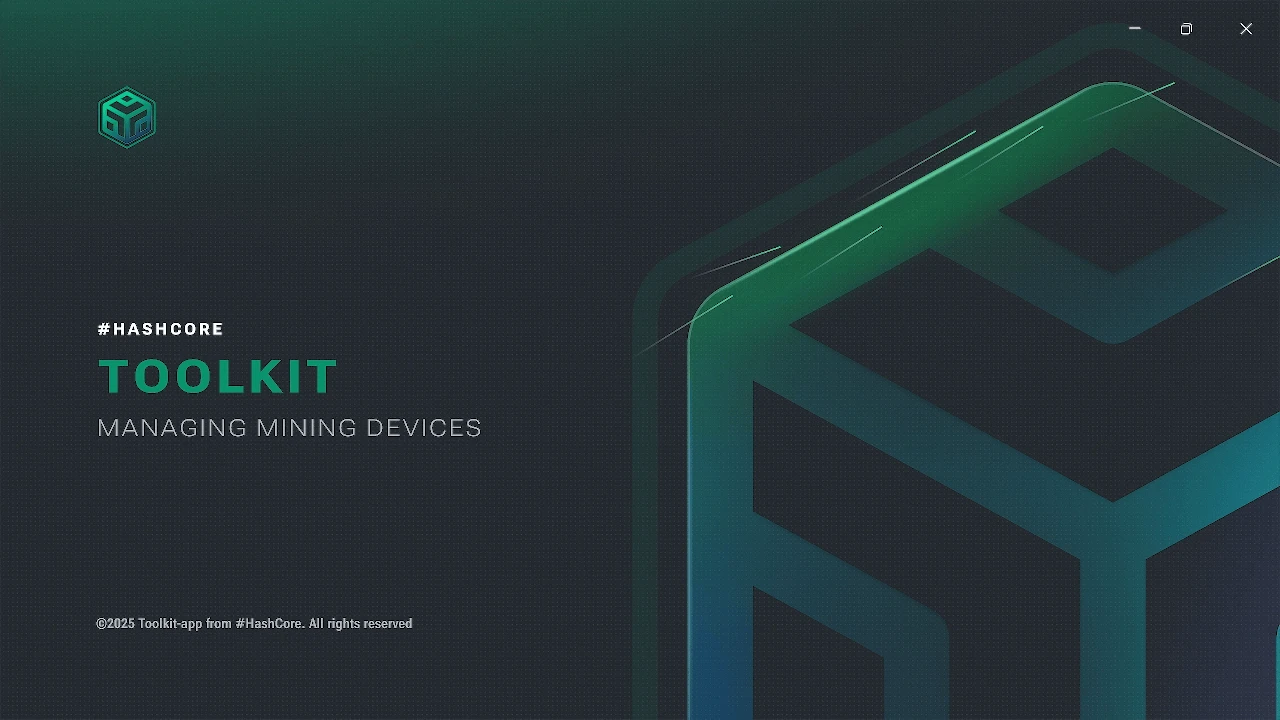

Vnish firmware is installed using the handy HashCore Toolkit, which is available for download on the official website. The programme allows you to quickly install the firmware on several miners at once, which is especially convenient for large farms.

To get started, open a group of miners in HashCore Toolkit. The software will scan IP addresses within the specified range and display all active devices. If the group has not yet been created, you can add it manually by entering a name, description, and network address range (for example, 192.168.1.0-192.168.1.255).

Next, select one or more miners to which you want to install the firmware and choose All commands – Install firmware from the menu. In the parameters, specify the path to the firmware archive, its name, and version. Important: You do not need to unzip the downloaded file. The name of the archive must contain the word install if you are installing from scratch, or update if you are updating existing firmware.

Examples of file names:

• Antminer-l9-aml-nand-v1.2.6-install.tar.gz
• Antminer-s19-xil-aml-v1.2.6-rc4-install.tar.gz

Where Antminer is the name, 1.2.6 is the version, install is the type of installation.

After confirmation, click the Install button. The process can be tracked in the Operations tab, where the status for each device is displayed.

This approach allows administrators to update dozens or hundreds of ASIC miners in a centralised manner, minimising downtime and reducing the risk of installation errors.

Recommended settings for W/TH & fans

The advantage of Vnish is the ability to adjust the energy efficiency ratio (W/TH). This allows you to find the optimal balance between performance, power consumption, and equipment safety.

For most Antminer models, it is recommended to select energy efficiency profiles according to the mining conditions and the cost of electricity. If the main objective is to reduce costs, it is worth choosing more economical operating modes that slightly reduce the hash rate but maintain stability. When performance is at the forefront, it is advisable to use more powerful profiles, but you need to take care of high-quality cooling. The fan speed should also be adjusted to the room conditions. In well-cooled server rooms, you can reduce the speed to a comfortable level, while in hot workshops or containers, the fans should work harder. It’s important not to reduce the speed too much, as this can cause overheating and shorten the life of the equipment.

Thus, using the recommended Vnish parameters not only saves money, but also ensures stable operation of the farm in all climatic conditions.

Rollback plan

The ability to quickly restore the factory firmware is a must-have tool for every grower working with custom software. Vnish has a convenient rollback mechanism that allows the user to return to the stock state in case of warranty service. This provides an additional level of security and confidence when experimenting with new settings.

Rollback to stock firmware using HashCore Toolkit

1. Launch HashCore Toolkit on your computer and check that the miner is available on your local network.
2. In the main window, find the device in the list of active miners and select it.
3. Open the Commands menu and click Restore to stock firmware.
4. Confirm the action and wait for the process to complete. The miner will automatically restart during the recovery process.
5. After the restart, open the device’s IP address in a browser and make sure it is working on the standard Bitmain interface.

This approach allows you to safely return the hardware to its factory state without using an SD card or additional tools.

FAQ

This FAQ table is a collection of frequently asked questions about Vnish. It helps you quickly find answers to key topics: how the firmware works, its functionality, methods of optimising ASIC chips, and the impact on hardware durability.

Conclusions

Vnish is the best choice for those who want stability, energy efficiency, and control over their miners’ work. Customised firmware allows you to reduce costs and extend the life of your hardware.
